Polyethylene sliver cans are available in all dimensions, we make exclusiveUse of an anti-static, high-density, low-pressure grade of polyethylene.Our polyethylene CANS may be delivered without assembled conditionFor overseas shipment.
| Diameter (mm) | 50 | 60 | 80 |
| Height (mm) | 65 | 83 | 105 |
| Load (kg) | 60 | 70 | 90 |
| Inch | 36 | 42 | 45 | 48 | 50 |
| mm | 914 | 1067 | 1143 | 1220 | 1270 |

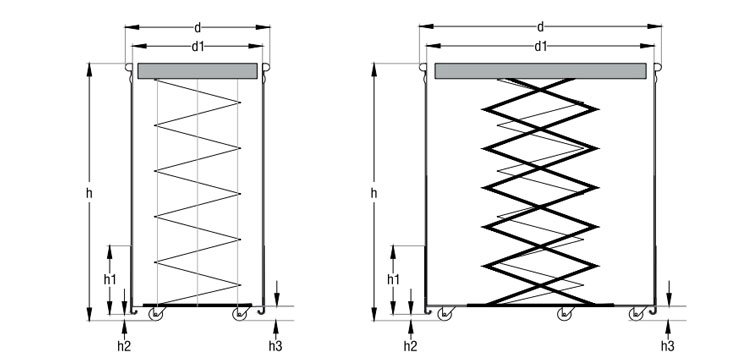

| Dia | D | D1 | H2 | |
| 10* | 272 | 254 | ||
| 12* | 323 | 305 | ||
| 14* | 374 | 356 | ||
| 16* | 424 | 406 | 8,25,50 | 65.83 |
| 18* | 475 | 457 | 8,25,50 | 83 |
| 20* | 526 | 508 | 8,25,50 | 83 |
| 24* | 630 | 610 | 8,25,50,70 | 83.105 |
| 28* | 724 | 700 | 50,70 | 105 |
| 30* | 774 | 750 | 50,70 | 105 |
| 36* | 928 | 900 | 50,70 | 105 |
| 40* | 1020 | 1000 | 50,70 | 105 |
| Spring Force (5%) | inches | 16 | 18 | 20 | 24 | 32 | 36 | 40 | |||||||||||||
| mm | 400 | 450 | 500 | 600 | 800 | 900 | 1000 | ||||||||||||||
| inches | 36 | 42 | 48 | 42 | 45 | 48 | 42 | 45 | 48 | 42 | 45 | 48 | 40 | 48 | 42 | 45 | 48 | 42 | 45 | 48 | |
| mm | 900 | 1070 | 1200 | 1070 | 1143 | 1200 | 1070 | 1143 | 1200 | 1070 | 1143 | 1200 | 1000 | 1200 | 1070 | 1143 | 1200 | 1070 | 1143 | 1200 | |
| Combed Cotton | kg. | 11.50 | 13.50 | 16.50 | 19.00 | 20.00 | 21.00 | 22.00 | 24.00 | 24.50 | 31.00 | 36.00 | |||||||||
| Cotton & Viscose(Rayon) | kg. | 8.00 | 9.50 | 11.00 | 13.50 | 14.50 | 16.00 | 17.00 | 18.50 | 19.50 | 25.00 | 27.00 | 28.00 | 32.00 | 39.00 | 39.00 | 43.00 | 45.00 | 42.00 | 45.00 | 54.00 |
| Blend | kg. | 7.00 | 9.00 | 10.00 | 9.50 | 10.50 | 11.00 | 15.00 | 16.50 | 17.00 | 23.00 | 24.00 | 25.00 | ||||||||
| Synthetic | kg. | 5.00 | 7.50 | 8.50 | 8.50 | 9.00 | 9.50 | 13.00 | 13.50 | 14.50 | 20.00 | 21.00 | 21.00 | 25.00 | 28.00 | 31.50 | 33.00 | 34.00 | 34.00 | 37.00 | 38.00 |
| Initial Load | kg. | 0.45 | 0.45 | 0.45 | 0.56 | 0.56 | 0.56 | 0.60 | 0.60 | 0.815 | 0.815 | 0.815 | 1.50 | 1.50 | 1.75 | 1.75 | 1.75 | 2.00 | 2.00 | 2.00 | |
Note: *Other Sliver Can Dimensions & Spring Load Capacity on Request
